- Size: 2
- Place of Origin: Jinan
- Brand Name: TigerTec
- Model Number: TR203-1
- Weight: 400.000 kg

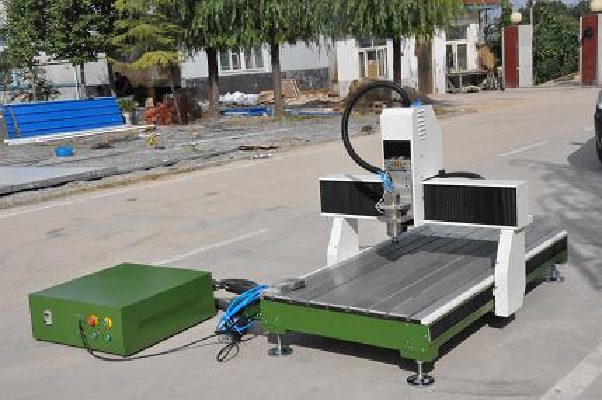

CNC routers are also used in advertising industry to cut or engrave the materials. PVC, APL, Acrylic, Brass, Aluminum, Al-Plastic board, even paper can be processed by the machine.
Applications
Engraving the characters or patterns in kinds of materials;
Cutting the materials for individual demands;
Processing sports equipment, such as surf board;
Processing materials used for indoor and outdoor decoration.
- Size: 2
- Place of Origin: Jinan
- Brand Name: TigerTec
- Model Number: TR203-1
- Weight: 400.000 kg
TECHNICAL DATA | CNC router tr101-1 | CNC router tr203-1 |
Floor space | 1000x1300x1000mm | 1200x1500x1050mm |
Working field | 400x400x150mm | 600x900x150mm |
Work table dimensions | 514x600mm. | 710x1100mm |
Max depht of cut | 20mm | 20mm |
Width of feeding belt | 40mm | 40mm |
Adjustable feed speed | 5/30M/min. | 5/30M/min. |
Operating system | NK105 G2 | NK105 G2 |
Maching structure | Cast steel, table type | Cast steel, table type |
Structure X Y Z | Ball screw and linear guides | Ball screw and linear guides |
Spindle power motor | 1.5KW self-coolant spindle, ER16 | 1.5KW self-coolant spindle, ER16 |
Working mode | Stepper | Stepper |
Delta Inverter | 1.5KW | 1.5KW |
Spindle rotation | 0-24000rpm | 0-24000rpm |
Command mode | G Code | G Code |
Interface | USB | USB |
Memory | 128MB(or flash drive) | 128MB(or flash drive) |
Machine accuracy | -0.05mm/m | -0.05mm/m |
Software | Type3, Ucancam,Vectric,Asprie | Type3, Ucancam,Vectric,Asprie |
Working surface height from floor | 830mm. | 830mm. |
Weight | 250kgs | 350kgs |
Shipping dimensions | 2700 x2000 x 1800mm | 1430x1230x930mm |
