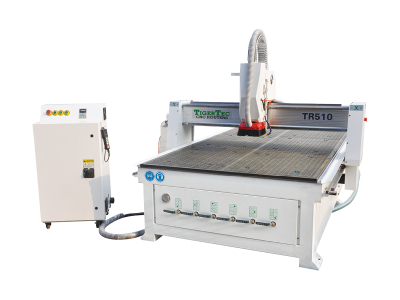

CNC Router TR510

CNC Router TR510

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Port: QINGDAO OR TIANJIN
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier TigerTec
| Factory
Experience:2010-02-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0
  • Place of Origin:  SHANDONG
  • Brand Name:  TigerTec
  • Model Number:  TR510
  • Weight: 0.000 kg

CNC Router TR510

TigerTec CNC router TR510 is a larger table. We can use it for many applications as follow:

·Sign and graphic making

·Woodworking and cabinet making

·3D engraving

·Aluminum and brass engraving

·Fabrication making

We work with some world famous brands to ensure the quality of the machine. As: HSD, Colombo, Benz, Becker, Schneider, Phoenix, Delta, Hiwin, Yaskawa, Syntec, Type3, Vectric and so on.


TigerTec CNC router TR510 is a larger table. We can use it for many applications as follow:

·Sign and graphic making

·Woodworking and cabinet making

·3D engraving

·Aluminum and brass engraving

·Fabrication making


Model

Description

TR510

1

X,Y,Z working area

1500*3000*200mm

2

Table size

1665*3500mm

3

Resolution

±.03/300mm

4

Repeatability

±0.05mm

5

Lathe Structure

Welding steel structure

6

X structure

Rack pinion and linear rails

7

Y structure

Rack pinion and linear rails

8

Z structure

Ball screw and linear rails

9

Max. consume power

6.5kw

10

Max. rapid speed

0-32000mm/min

11

Max. working speed

0-20000mm/min

12

Power of spindle

3.0kw Italian HSD spindle,ER25

13

Spindle speed

0-18000rpm

14

Working mode

Stepper motor

15

Working voltage

AC220V,50/60Hz,3PH

16

Command code

G Code(*uoo,*nc,*mmg,*plt)

17

Operating system

DSP system or Mach3 system

18

Interface

Printer port 50pins or USB

19

System memory

128M(or flash drive)

20

X,Y working accuracy

<0.01mm

21

Software

Type3,Ucancam V9, Vectric

22

Gross weight

1500KGS

23

Packing size

3680X2130X1850MM
