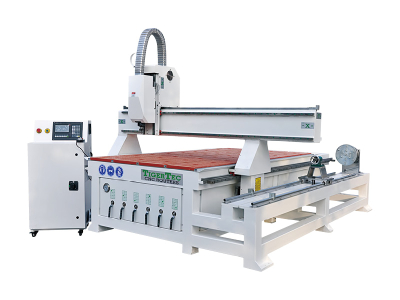

CNC Router TR408R with rotary axis

CNC Router TR408R with rotary axis

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Port: QINGDAO OR TIANJIN
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier TigerTec
| Factory
Experience:
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0
  • Place of Origin:  SHANDONG
  • Brand Name:  TigerTec
  • Model Number:  TR408R
  • Weight: 0.000 kg

Tigertec CNC Router TR408R with rotary axis is one of the most popular models for many applications. We offer any options for this model for different industries. Besides, the machine with rotary axis is one of the state of the art CNC machines designed and developed for carving industry focusing on cylindrical as well we flat engraving/carving and cutting application with its 4th axis in place making 3D carving on cylindrical surface on any wood. The machine is easy to use, you will be acheving basic routing tasks and roducing your pieces in on time





Options:

·Special size table.From1220*1300mm~2000*6000mm

·Vacuum table or Aluminum T-slot extrusion table

·Automatic lubricating system

·Mist cooling system

·Machine moving feel

·Servo system

·Dust collecting system

·Different power of spindles


This machine in multiple use, keep in mind the diversity in wood carving and cutting industry for carving doors, windows, table legs chair legs, staircase columns, 3D god relief and many more interior decorative purpose. Our CNC Router TR408R with side roatry attachmnent is all in one machine that serves all.

CNC router TR408R with rotary axis

Model

Description

TR408R

1

X, Y, Z working area

1300*2500*200mm, Rotary attachment diameter 400mm, length 2500mm

2

Table size

1465*3000mm

3

Resolution

±.03/300mm

4

Repeatability

±0.02mm

5

Lathe Structure

Welding structure

6

X Structure

Rack pinion and linear rails

7

Y Structure

Rack pinion and linear rails

8

Z Structure

Ball screw and linear rails

9

Max. consume power

10.5kw

10

Max. rapid Speed

0-32000mm/min

11

Max. working Speed

0-20000mm/min

12

Spindle Power Motor

3.0kw/4.5kw/6.0kw/7.0kw Italian HSD spindle

13

Spindle Speed

0-18000rpm

14

Working Mode

Stepper motor

15

Working Voltage

AC220V/380V,50/60Hz,3PH

16

Command Code

G Code (*uoo,*nc,*mmg,*plt)

17

Operating System

Windows control system

18

Interface

USB

19

System Memory

128M(or flash drive)

20

X,Y Working Delicacy

<0.01mm

21

Software

Artcam express, Vectric, Aspire
