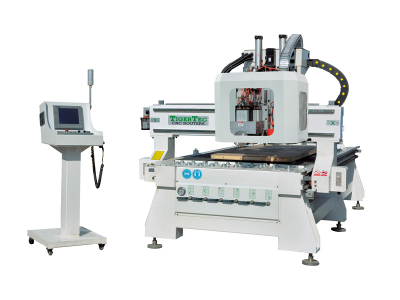

CNC Router TR408H ATC with boring unit

CNC Router TR408H ATC with boring unit

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Port: QINGDAO OR TIANJIN
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier TigerTec
| Factory
Experience:2010-02-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0
  • Place of Origin:  SHANDONG
  • Brand Name:  TigerTec
  • Model Number:  TR408H ATC
  • Weight: 0.000 kg

Tigertec TR408H-ATC router with Italy boring head is designed for industrial wood work factory.It's a strong router using a heavy stress less welded steel frame, suitable for high speed milling, boring and sawing.



With the help of some aggregate, the machine can be used for side milling and boring.



In standard, the machine is equipped with an Italian air cooling spindle, a Italian boring head, a Yaskawa servo motors and the Taiwanese Syntec numerical controller

Options:

1.8pieces tool holders

2.Mixed T-slot and vacuum table

3.Automatic lubricating system

4.Z trock 400mm

5.Larger size table 2000*6000mm

6.Aggregate head

7.Boring unit



With the help of some aggregate, the machine can be used for side milling boring

Model

Description

CNC Router TR408H ATC  with boring unit

1

X,Y,Z working area

1300*2500*300mm

2

Table size

1560*3850mm

3

Resolution

±.03/300mm

4

Repeatability

±0.05mm

5

Lathe Structure

Welding steel structure

6

X structure

Rack pinion,linear rails

7

Y structure

Rack pinion,linear rails

8

Z structure

Ball screw and linear rails

9

Max.consume power

12kw

10

Max.rapid

0-40000mm/min

11

Max.working Speed

0-30000mm/min

12

Spindle Power Motor

9.0kw Italian HSD spindle with ATC,ER32

13

Tools magazine

6 tool holders

14

Spindle Speed

0-24000rpm

15

Working Mode

Yaskawa servo system

16

Working Voltage

AC220/380V,50/60Hz,3PH

17

Command Code

G Code(*uoo,*mmg,)

18

Operating System

Syntec Windows control system(Taiwan)

19

X,Y Working Delicacy

<0.02mm

20

Software

Type3,Artcam

21

Interface

Internet or USB

21

Memory

256M(or flash drive)
