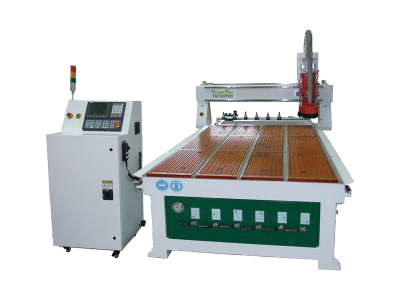

CNC Router TR408 ATC
TigerTec CNC router TR408 ATC is designed to accommodate a wide range of materials and applications. We can work on wood, plastic, aluminum or other none-ferrous materials. This is an economic model ATC machine for factories.
We use Italian HSD air cooling ATC spindle, Yaskawa servo system, Syntec windows control system for this machine. It is a good choice for wood working factory.
We can offer high speed, accuracy and convenience for this machine. We use 6 pieces tool holders on this machine. It can work on complicated designs without manual change tools. It can save a lot of your time and avoid mistakes to change the tools.
Options:
·6~10 pieces tool holders
·T-slot and vacuum table
·Lubricating system
·Higher Z clearance: 200-400mm
·Larger size table 7*21ft
·Sider cutter and boring unit
TigerTec CNC router TR408 ATC is designed to accommodate a wide range of materials and applications. We can work on wood, plastic, aluminum or other none-ferrous materials. This is an economic model ATC machine for factories.
Model | Description | TR408 ATC |
1 | X,Y, Z working area | 1300*2500*200mm |
2 | Table size | 1465*3200mm |
3 | Resolution | ±.03/300mm |
4 | Repeatability | ±0.05mm |
5 | Lathe Structure | Welding steel structure |
6 | X structure | Rack pinion, linear rails |
7 | Y structure | Rack pinion, linear rails |
8 | Z structure | Ball screw and linear rails |
9 | Max. consume power | 12kw |
10 | Max. rapid speed | 0-40000mm/min |
11 | Max. working speed | 0-30000mm/min |
12 | Spindle power | 9.0kw Italian HSD spindle with ATC, ER32 |
13 | Tools magazine | 6~10 tool holders, line tool magazine |
14 | Spindle speed | 0-24000rpm |
15 | Working mode | Yaskawa servo system |
16 | Working voltage | AC220/380V,50/60Hz,3PH |
17 | Command code | G Code(*uoo,*mmg,) |
18 | Operating system | Syntec Windows control system(Taiwan) |
19 | X,Y working delicacy | <0.02mm |
20 | Software | Type3, Vectric |
21 | Interface | Internet or USB |
21 | Memory | 256M(or flash drive) |
22 | Gross weight | 1700KGS |
23 | Packing size | 3380X1980X1780MM |
