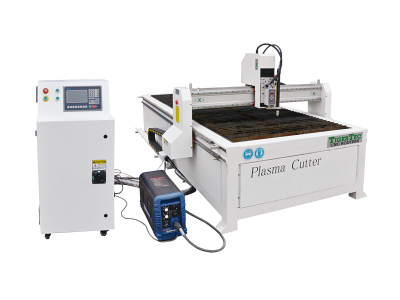

CNC Plasma TR408P

CNC Plasma TR408P

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 100 Set/Sets per Month
  • Port: QINGDAO OR TIANJIN
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier TigerTec
| Factory
Experience:2010-02-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0
  • Place of Origin:  SHANDONG
  • Brand Name:  TigerTec
  • Model Number:  TR408P
  • Weight: 0.000 kg

Tigertec CNC Plasma TR408P is very simple to operate ang a good choice for customers.

We use Thermal Dynamics power generator according to your request. We offer different power generator according to your request.

The controller is an offline control system and you can choose the standard designs from the system program.

The system has automatic height control function, this greatly help processing the material which is not flat.

Options:

On request, we can build the machine with a different working size.

Different generator brands can be supplied

Mach3 CNC control from USA

Mainly used on cutting workshops as Channel letter, parts cutting

Model

Description

TR408P

1

X,Y,Z working area

1300X2500X100mm

2

Working material

steel, aluminum, stainless steel

3

Z axis clearance

100mm

4

Working material thickness

30mm

5

Plasma power

Thermal Dynamics, USA or Hypertherm

6

Input current

120A

7

Cutting accuracy

±0.5mm

8

Repeatability

0.05mm

9

Cutting speed

0-10m/min

10

Travel speed

0-20mmin

11

Input voltage

380V, 3ph or 220V, 3Ph

12

Transmission

Rack pinion

13

Driving system

Stepper system

14

Power frequency

50Hz

15

File transmission

USB( interface)

16

Arc mode

Non-contact arc

17

able type

Teeth and water table

18

Weight

USB 1000KGS

19

Packing size

3330X1920X1620mm

20

Gross weight

1200KGS
